Barti VoIP - Creating a Speed Dial for Internal Phone Transfering

Overview

These are the steps you can take to create a speed dial for transferring internal calls on the Yealink sip-t54w phone.

Steps from the Phone

1. Long press any of the side buttons for 5 seconds
2. Use the arrow key to find Type: SpeedDial
3. Keep the Account ID at Auto
4. Label: Give the label of where the phone transfer phone is located (e.g. Front Desk, Exam Room 1, Back Office, etc..)
5. Value: Enter the number of the extension of the transfer phone created in Barti.
   1. For instructions on how to enable transferring, please refer to Enabling VoIP Phones

Video Overview

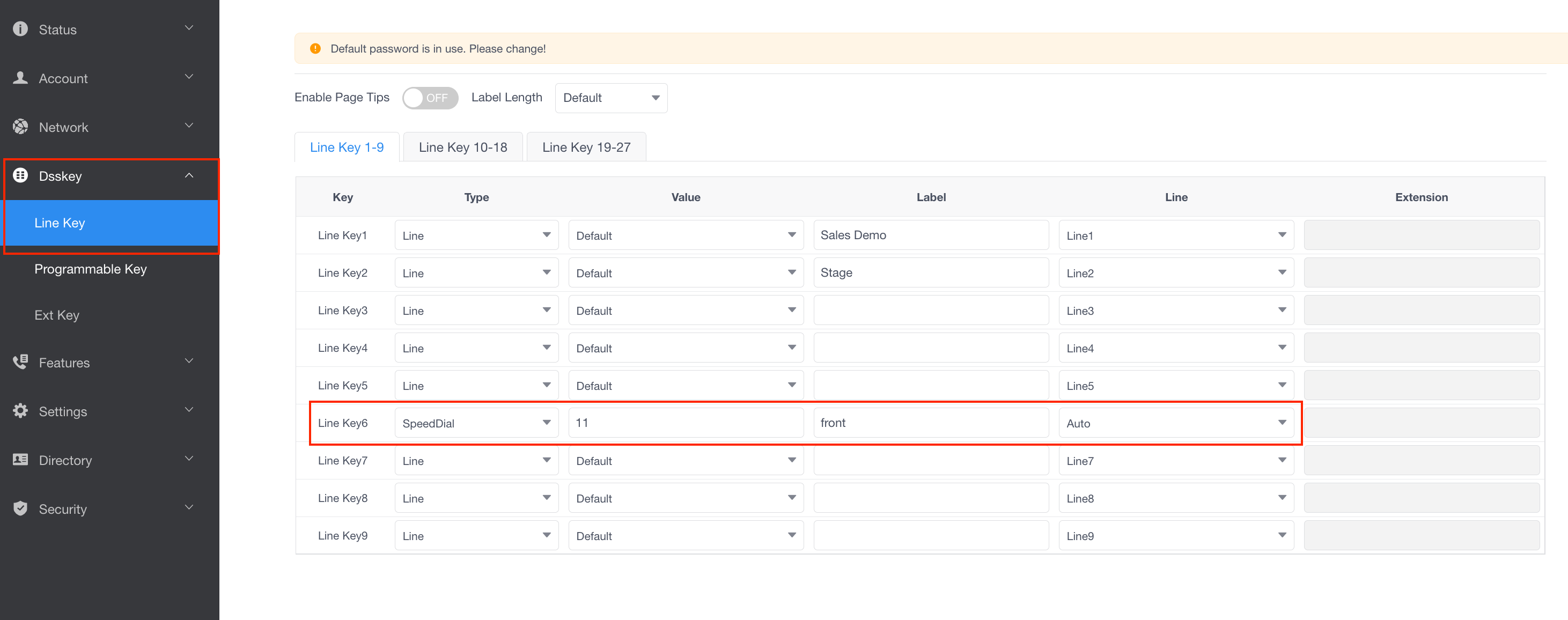

Steps from the Yealink sip-t54w Admin Console

1. Log into your Yealink phone through its IP Address. (To find the IP address, you can press the 'OK' button on the phone to get to the Status page. The IP address will be the IPv4 number. Enter the number into your browser's URL)
2. Navigate to Dsskey > Line Key
3. Edit the Line Key to add your phone extensions
   1. Type: Speed Dial
   2. Value: Extension Number
   3. Label: Label of the phone
   4. Line: Auto
