This article provides instructions for connecting your Dymo label printer to Barti to print frame labels.
Supported Models
Devices: - Dymo LabelWriter 550 - Dymo LabelWriter 450, Dymo LabelWriter 450 Twin Turbo
Labels: - Dymo 550 Series: Dymo 30373 and Dymo 30299 - Dymo 450 Series: Dymo 30373
Requirements
- Dymo Connect should be installed on the computer that will be connected to the label printer.
- Do not connect your label printer to your computer until after the Dymo Connect software download is complete. This is a requirement from Dymo.
Step 1 — Download and Install Dymo Connect
- Skip this step if you already have Dymo Connect installed on your computer.
- The latest Dymo Connect software can be downloaded from their website. Follow the Dymo software installation steps.

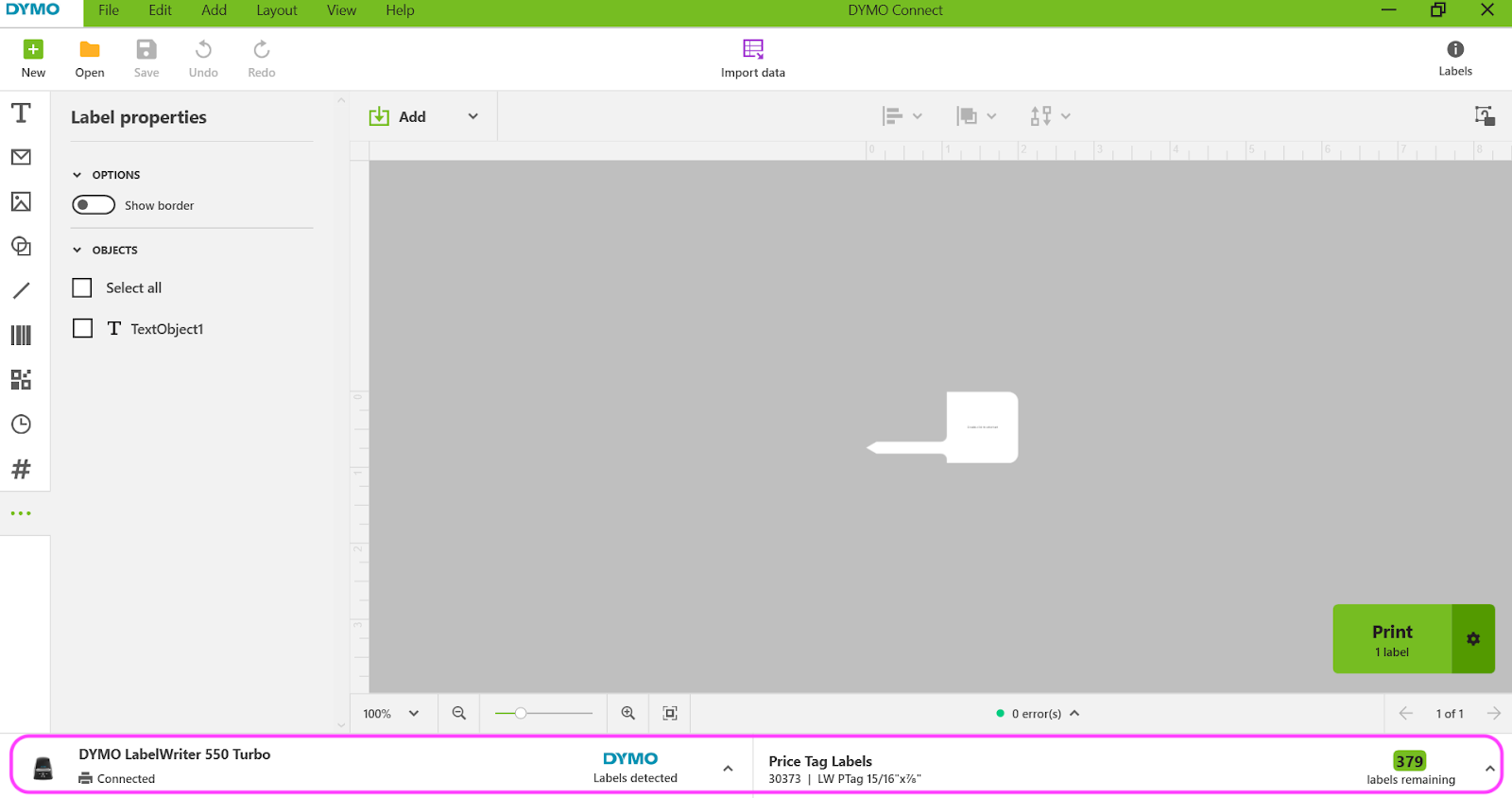

Step 2 — Open Dymo Connect
- Open Dymo Connect.
- Plug in your label printer and turn it on.
- Dymo LabelWriter 550 series: Dymo Connect will show that the device is connected and will autodetect the label type.
- Dymo LabelWriter 450 series: Dymo Connect will show that the device is connected.

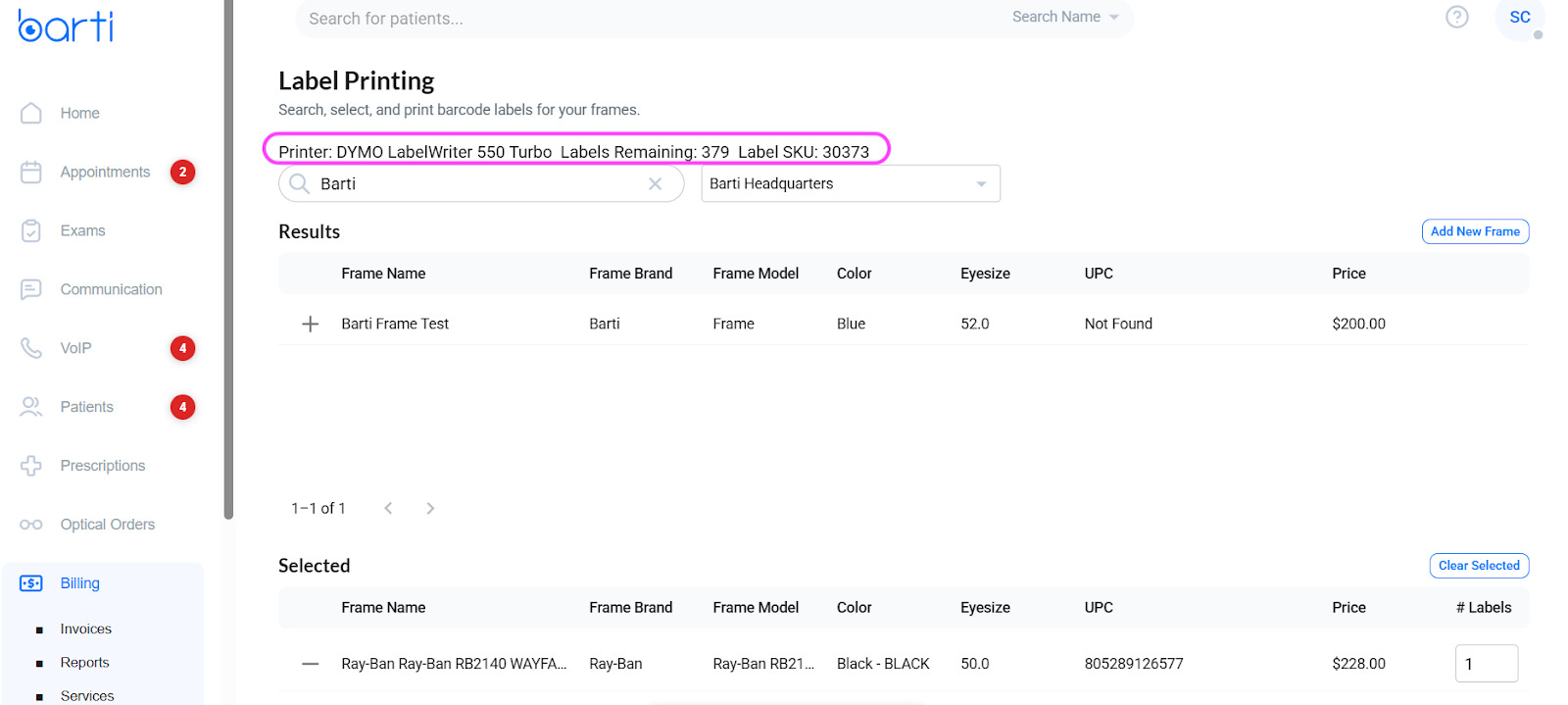

Step 3 — Queue Labels in Barti
- In Barti, go to Billing > Inventory > Label Printing. Barti will show the connected label printer model and label type.
- For the Dymo LabelWriter 450 series, the label SKU and labels remaining will not be present.
- Search for desired frames by name, UPC (12-digit), or EAN (13-digit) barcode.
- To add frames to the print queue, click the + on the left side of the results table.
- To remove frames from the print queue, click the - on the left side of the selected table.
- To modify the number of labels to be printed, edit in the selected table.
- To print, click Send to Label Printer.
- If you are using a Twin Turbo LabelWriter and do not want duplicate labels, ensure that labels are present only on one side of the device.
If you have any questions, please refer to Barti's Help Center or create a support ticket at support.barti.com.
